Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

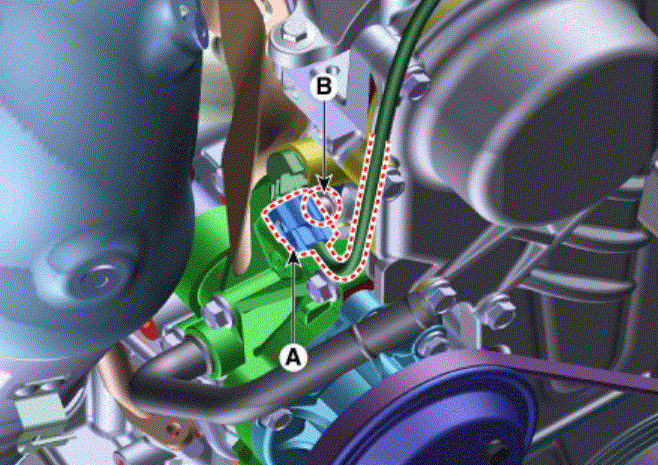

  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.
    G16176939Courtesy of HYUNDAI MOTOR AMERICA
