Camshaft Position Sensor (CMPS)
›
Repair Procedures
›
Removal
›
Bank 1/Intake
Bank 1/Intake
Disconnect the battery (-) terminal.

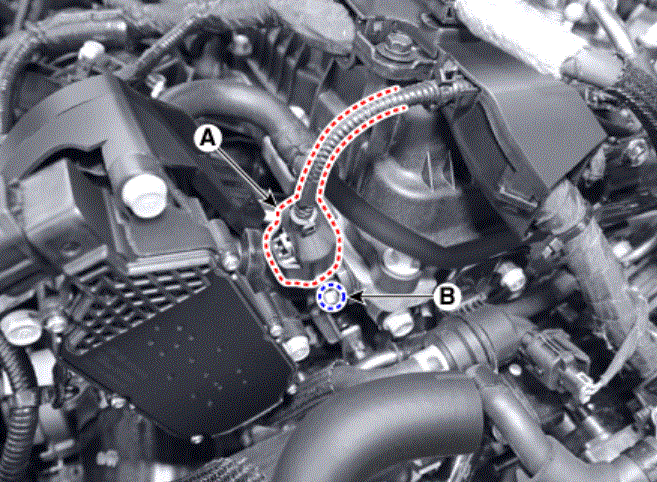

Disconnect the camshaft position sensor connector (A).
Remove the sensor, after loosening the mounting bolt (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
