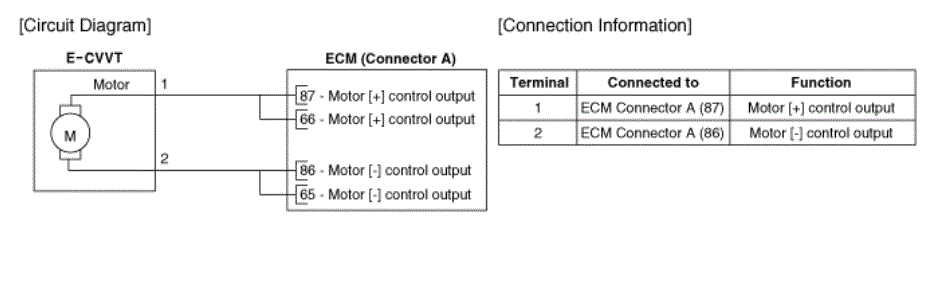

Home › Hyundai › 2022 › Elantra N Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › E-CVVT Motor › Schematic Diagrams › Schematic Diagram › Notes
