EWAG Position Sensor

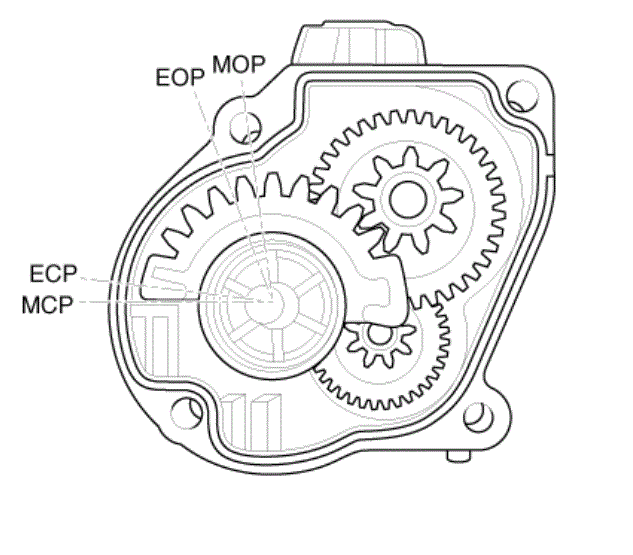

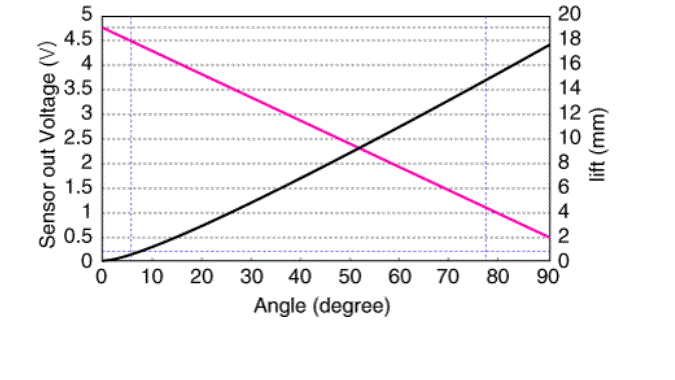

Position	Output Voltage [V]	Operating Angle [°]	Range of Rod [mm], reference
Mechanical Close end stop Position (MCP)	4.8	0	0
Electrical Close end stop Position (ECP)	3.8	25.6	2.17
Electrical Open end stop Position (EOP)	1.2	92	15.42
Mechanical Open end stop Position (MOP)	0.5	110	19.22
