Boost Pressure Sensor (BPS)

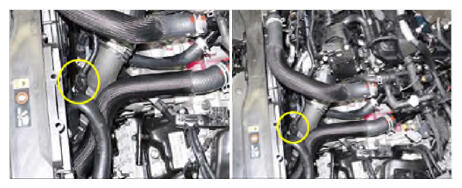

Boost Pressure Sensor (BPS) is located between turbocharger and intake manifold, and it senses inner pressure supercharged by the turbocharger. The Engine Control Module (ECM) determines a suitable fuel ratio in line with the pressure of intake manifold and intake air amount measured by Manifold Absolute Pressure Sensor (MAPS).
