Repair Procedures: Disassembly

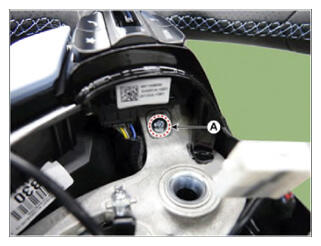

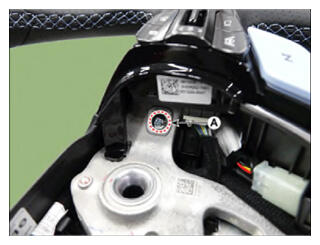

  1. Loosen the paddle shift switch mounting screws (A).
    G16177683Courtesy of HYUNDAI MOTOR AMERICA
    G16177684Courtesy of HYUNDAI MOTOR AMERICA

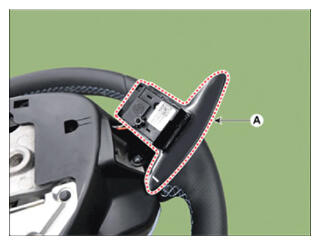

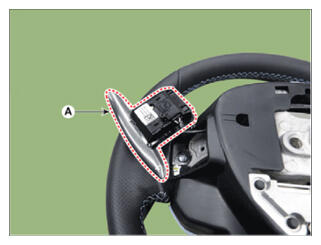

  2. Remove the paddle shift switch (A) after disconnecting the connector.
    G16177685Courtesy of HYUNDAI MOTOR AMERICA
    G16177686Courtesy of HYUNDAI MOTOR AMERICA

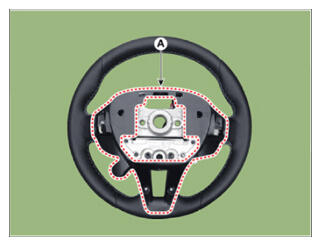

  3. Remove the lower cover (A) after loosening the screw.
    G16177687Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the wiring.

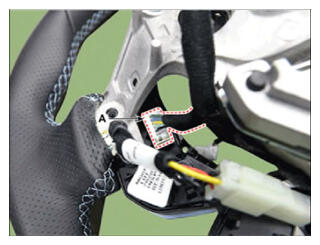

    1. Disconnect the remote control switch connector (A).
      G16177688Courtesy of HYUNDAI MOTOR AMERICA
      G16177689Courtesy of HYUNDAI MOTOR AMERICA

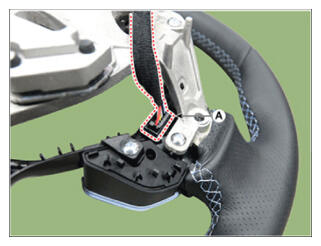

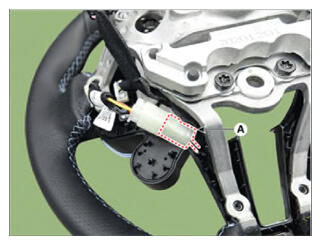

    2. Disconnect the heated steering wheel connector (A).
      G16177690Courtesy of HYUNDAI MOTOR AMERICA

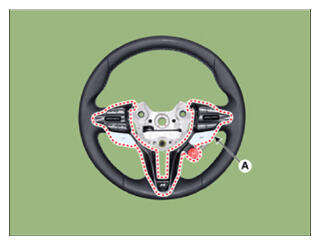

  5. Remove the remote control switch & switch bezel (A).
    G16177691Courtesy of HYUNDAI MOTOR AMERICA

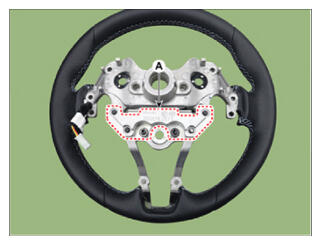

  6. Remove the damper (A).
    G16177692Courtesy of HYUNDAI MOTOR AMERICA
