Repair Procedures: Replacement
- Turn OFF ignition switch and disconnect the negative (-) battery cable.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ASSEMBLY ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY and BATTERY TRAY ")

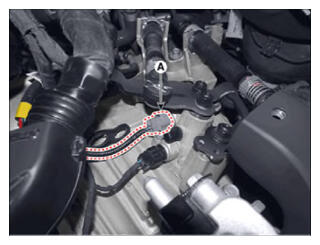

- Disconnect the neutral switch connector (A).

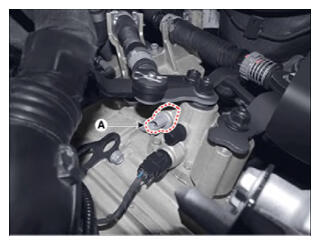

- Remove the neutral switch (A).
- Replace the new neutral switch.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
