Component Function: RLPSM: Function
RLPSM* controls the position adjustment of Rear Left Seat by the manual seat switch or IMS*. And it is connected to ICU* to form B-CAN network of the vehicle.

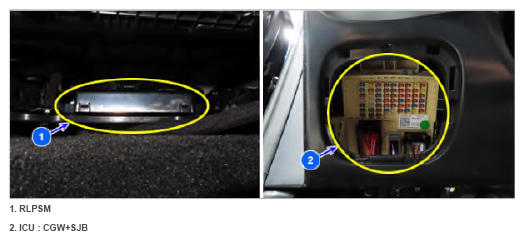

| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| RLPSM | "REAR POWER SEAT LH MODULE" | Rear Left Power Seat Module | SD200-4 |
| ICU* CGW SJB |
→ "ICU JUNCTION BLOCK" → "ICU JUNCTION BLOCK_IPS CONTROL MODULE" → "ICU JUNCTION BLOCK" |
→ [CGW+SJB] Integrated Central control Unit → Central Gate Way → Smart Junction Block |
|
| IMS* | Integrated Memory System | ||
