Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the front bumper assembly. (Refer to Body (Interior and Exterior- "FRONT BUMPER ASSEMBLY ")

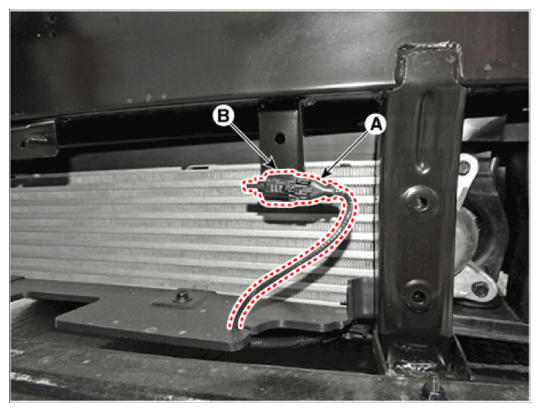

  3. Disconnect the connector (A), and then remove the ambient temperature sensor (B).
    G14711080Courtesy of HYUNDAI MOTOR AMERICA
