Home › Hyundai › 2022 › Kona Limited, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Boost Pressure Sensor (BPS) › Repair procedures › Removal

Repair procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

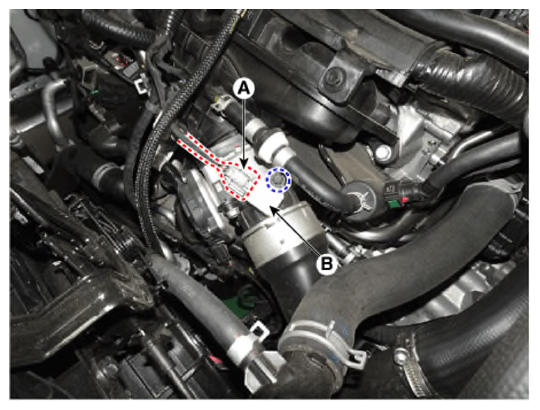

  2. Disconnect the BPS connector (A).
  3. Remove the BPS (B) after remove the mounting bolt.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

G14711019Courtesy of HYUNDAI MOTOR AMERICA
