Repair procedures: Installation
NOTE:
- When installing the CVVD actuator the shaft gear do not fit properly, rotate the CVVD actuator in both directions and installing it naturally. (Do not impact when installing the component.)

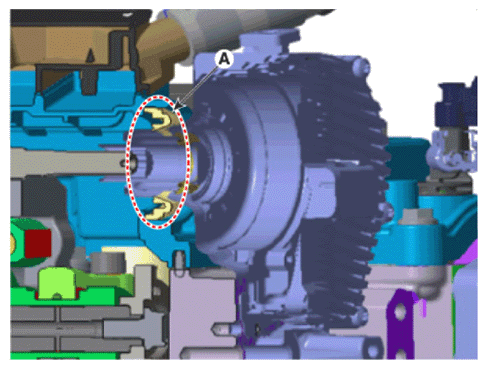

- Do not damage to the component when installing the cylinder head cover oil seal (A).
Information
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
