Repair procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

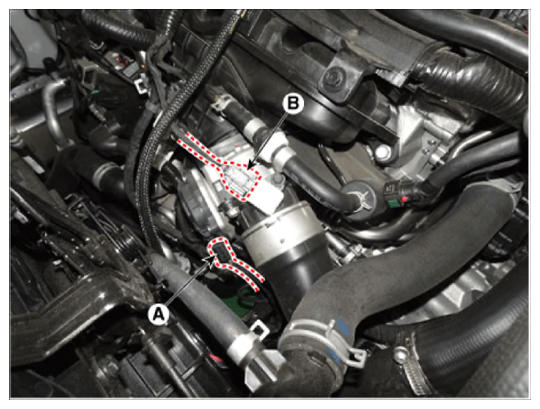

- Disconnect the ETC module connector (A).
- Disconnect BPS connector (B).
- Remove the Intercooler outlet hose. (Refer to Engine Mechanical - "INTERCOOLER ")

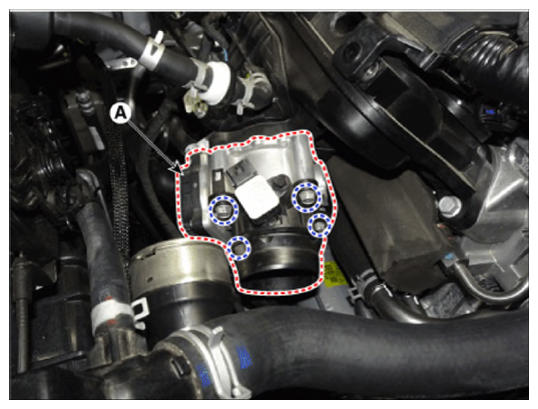

- Remove the ETC module (A) after loosening the mounting bolts.
Tightening Torque:
9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb-ft)
