Components & Components Location: Components

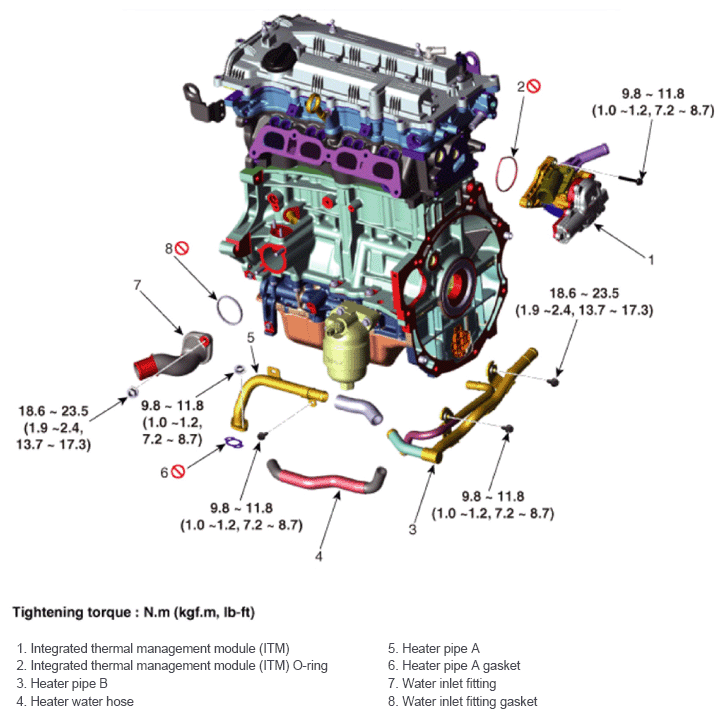

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification
G14711123Courtesy of HYUNDAI MOTOR AMERICA
