[Bank 1/Sensor 1]
- Disconnect the battery (-) terminal.

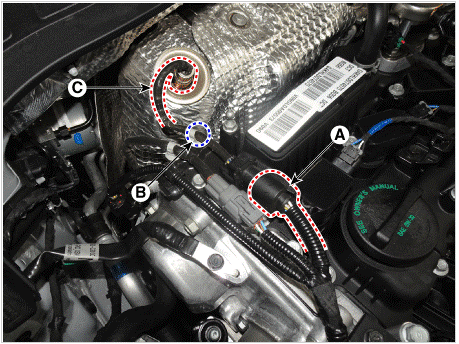

- Disconnect the heated oxygen sensor connector (A), and then remove the clip (B).
- Remove the heated oxygen sensor (C).
Tightening Torque:
39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb-ft)
NOTE:
- Note that the SST (Part No.: 09392-2H100 or 09392-1Y100) is useful when removing the heated oxygen sensor.
