Repair Procedures: Installation

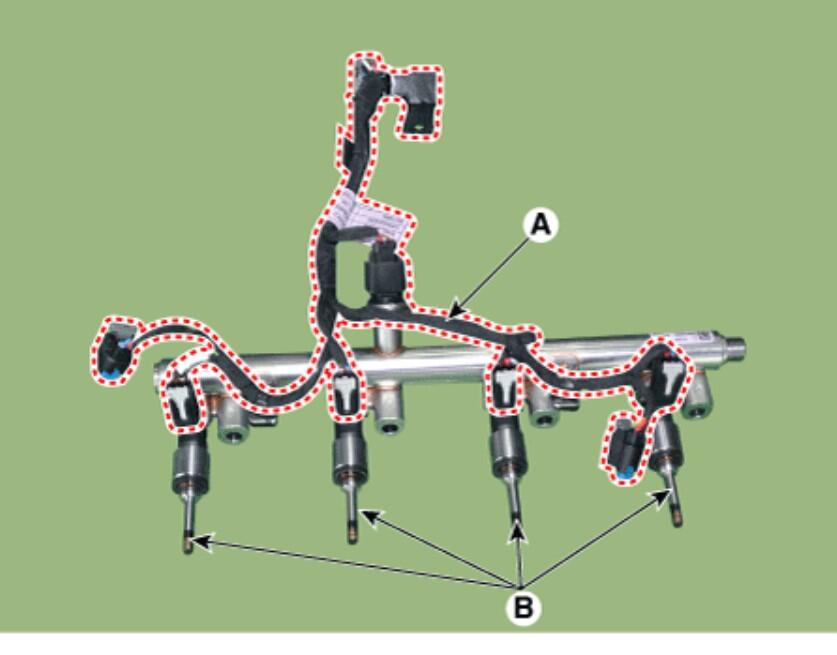

1. Install in the reverse order of removal.

NOTE:

• Do not reuse the high pressure fuel pipe.
• Do not deforming the high pressure fuel pipe.
• When tightening the nut, do not tilt the torque wrench.
• Install the component with the specified torques.
• Install the high pressure fuel pipe and then check the oil leakage.

NOTE:

• Do not reuse the mounting bolt.
• Do not reuse the injector fixing clip.

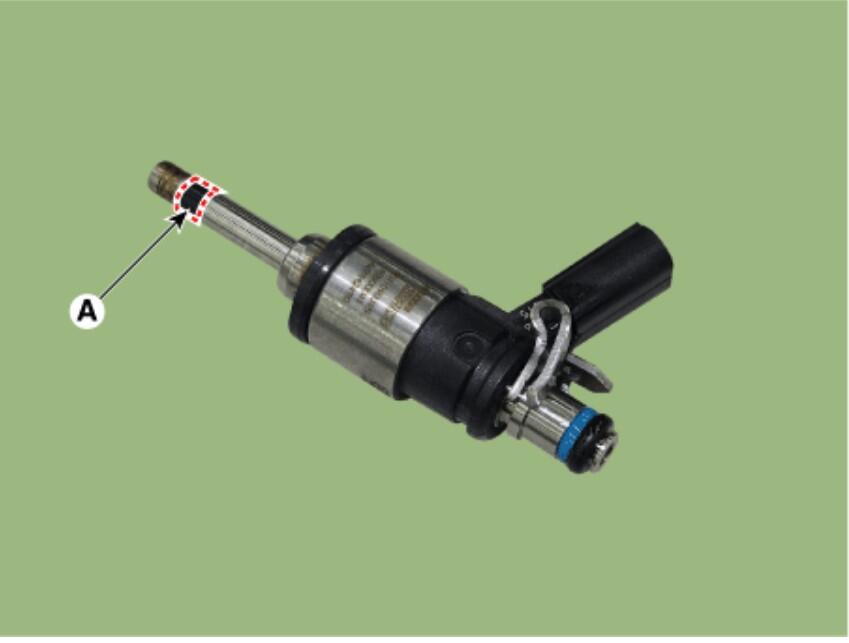

• Do not reuse the combustion seal (A).

Courtesy of HYUNDAI MOTOR AMERICA

• Be careful not to apply oil to combustion seal.
• Do not reuse the O-ring (A), support disk (B), rubber washer (C).

Courtesy of HYUNDAI MOTOR AMERICA

• When replacing the rubber washer, the steal plate part should be faced the cylinder installation part and the rubber plate part should be faced the injector body part.
• Apply the engine oil to the injector O-ring.
• When inserting the injector, be careful not to damage the injector tip.
