Charging System: Alternator

Item	Specification
Nominal output	13.5V, 150A
Speed in use	0 - 18, 000 RPM
Pin	3 pin (C, L, FR)
Pulley type	OAP
Voltage regulator	IC Regulator built in type
Regulator Setting Voltage	14.15 - 14.95V [25°C (77°F)]

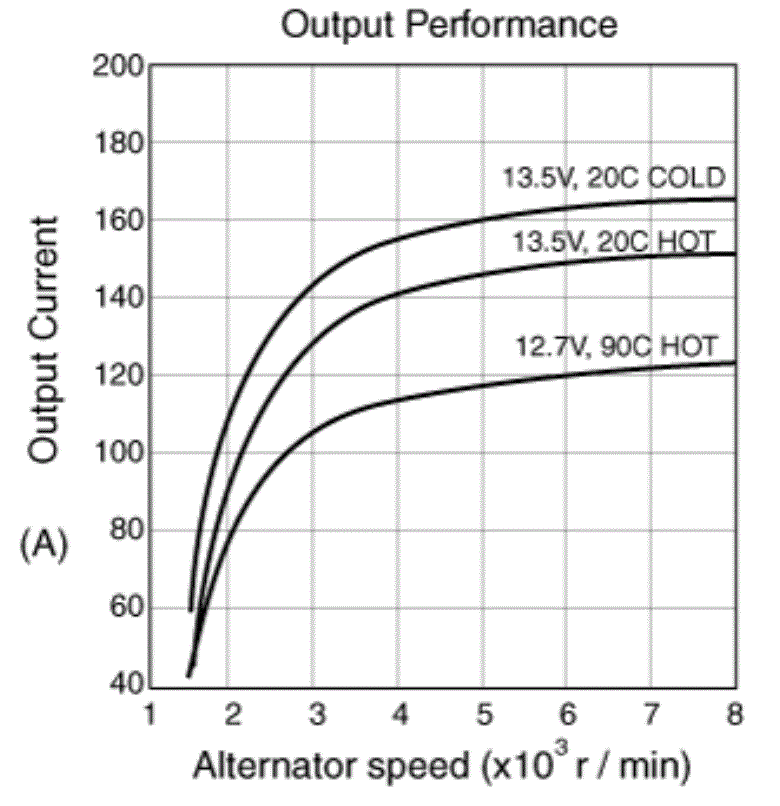

G16185862

Courtesy of HYUNDAI MOTOR AMERICA
