Repair Procedures: Installation

Apply tire soap or lubrication to the top and bottom tire beads.
CAUTION:
- When changing the wheel, the clamp type TPMS sensor can be reused.
Courtesy of HYUNDAI MOTOR AMERICA

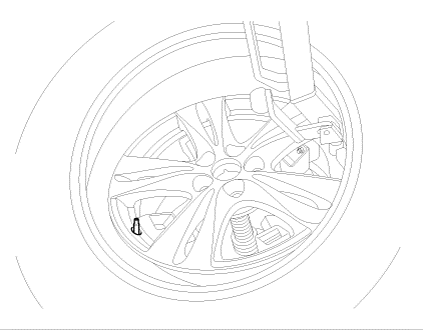

To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.

Courtesy of HYUNDAI MOTOR AMERICA

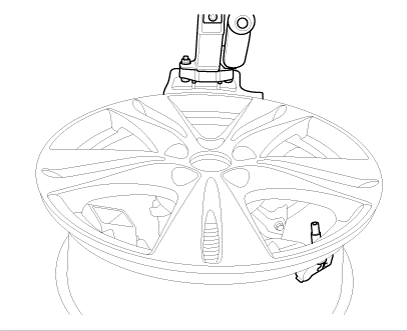

Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock).
Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.

Courtesy of HYUNDAI MOTOR AMERICA
Inflate the tire until both beads seat.
Tire pressure: Refer to "WHEEL & TIRE "

Courtesy of HYUNDAI MOTOR AMERICA
