Repair Procedures: Replacement

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the front seat belt upper anchor.
(Refer to "FRONT SEAT BELT PRETENSIONER ")

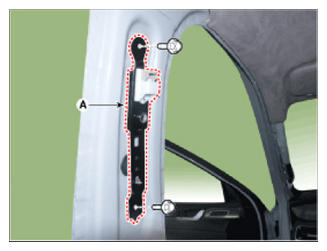

Loosen the mounting bolts and remove the height adjust (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
