Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the ECM.

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

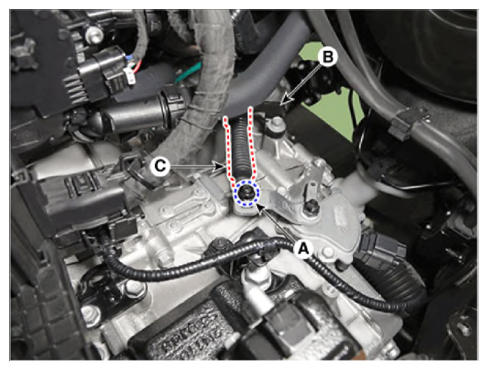

  5. Remove the shift cable (C) from the cable bracket (B), after loosening the mounting nut (A).
    G14794215Courtesy of HYUNDAI MOTOR AMERICA

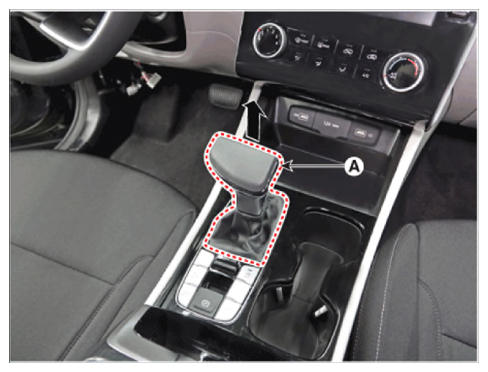

  6. Remove the shift lever knob & boots (A) pull both of it up.
    G14794216Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

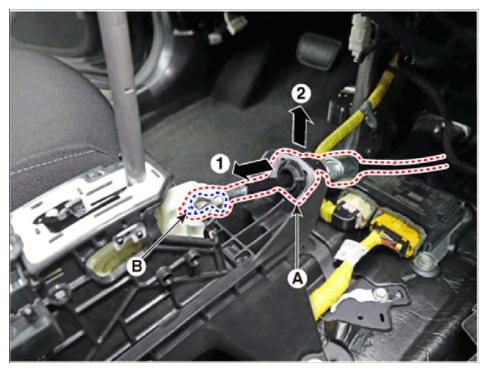

  8. Disconnect the shift cable (A) after removing the snap pin (B).
    G14794217Courtesy of HYUNDAI MOTOR AMERICA

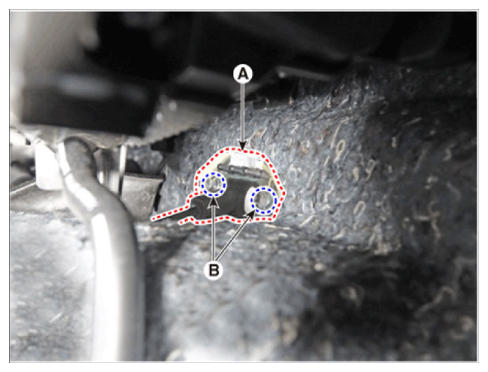

  9. Remove the retainer (A) by loosening the nuts (B-2ea).
    G14794218Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the shift cable from the vehicle.
