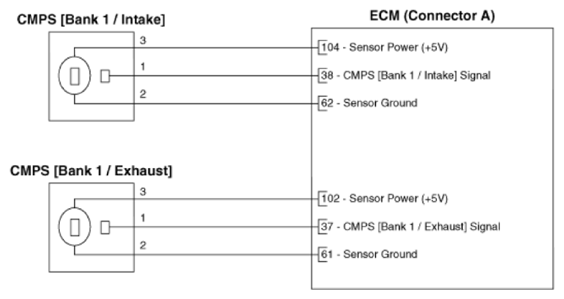

Home › Hyundai › 2022 › Santa Cruz SEL, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
