Components & Components Location: Components

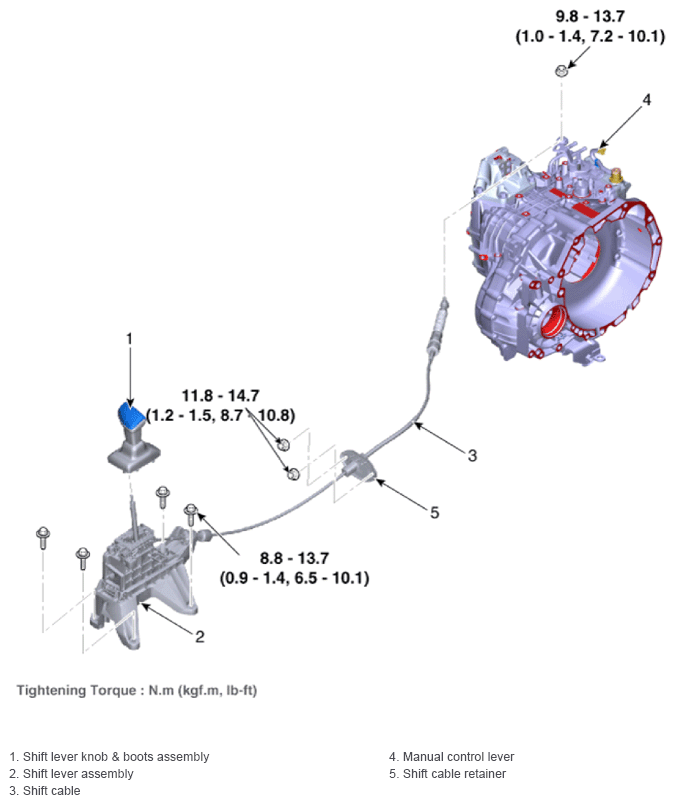

Fig 1: Shift Lever Components Location With Torque Specification
G14775034Courtesy of HYUNDAI MOTOR AMERICA
