Repair Procedures: Removal

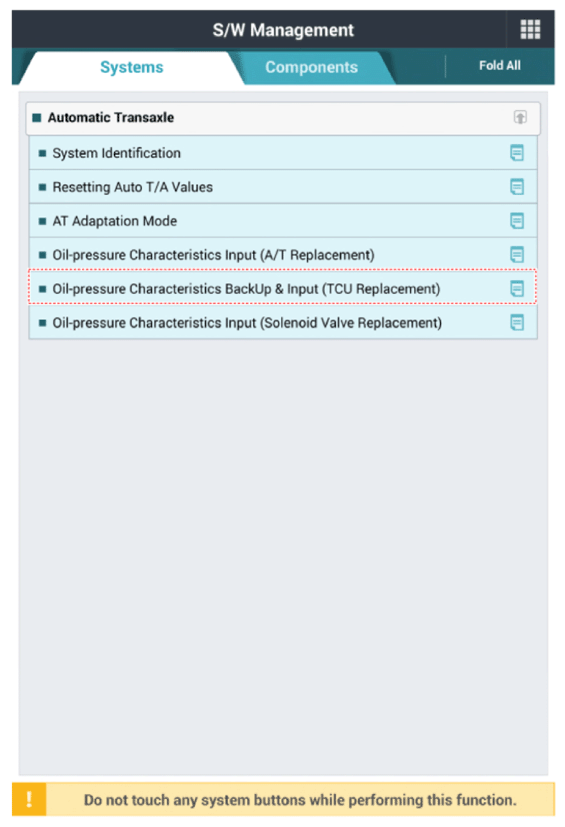

Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.

Courtesy of HYUNDAI MOTOR AMERICA
Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

Remove the TCM.

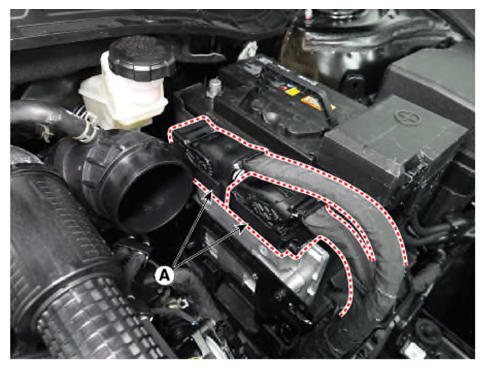

Disconnect the TCM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

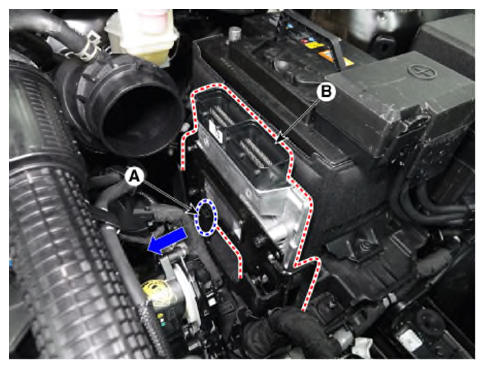

Remove the ECM (A) after releasing the fixing hooks.

Courtesy of HYUNDAI MOTOR AMERICA

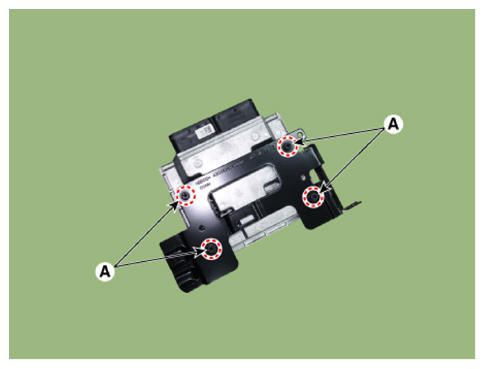

Remove the TCM after loosening the mounting nuts (A).

Tightening Torque:

6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
