Smart Key Code Saving

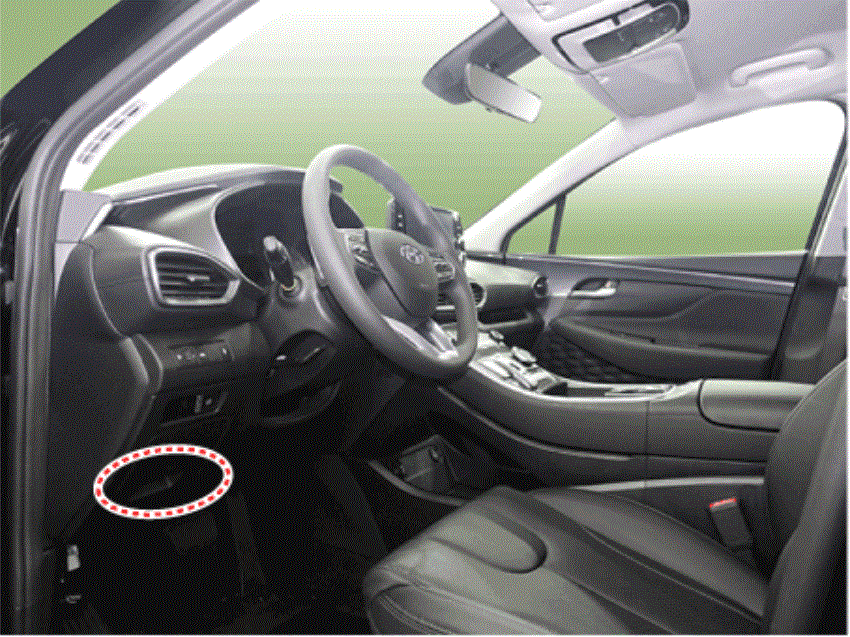

  1. Connect the DLC cable of diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on diagnostic tool.
    G16148753Courtesy of HYUNDAI MOTOR AMERICA

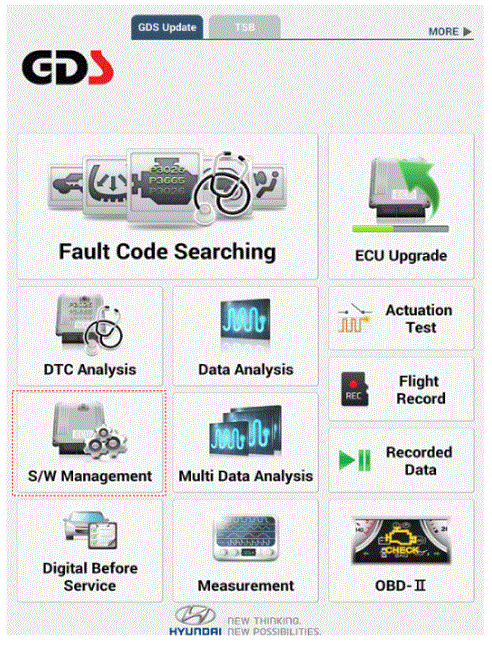

  2. Select the 'S/W Management' and 'Car model'.
    G16148754Courtesy of HYUNDAI MOTOR AMERICA

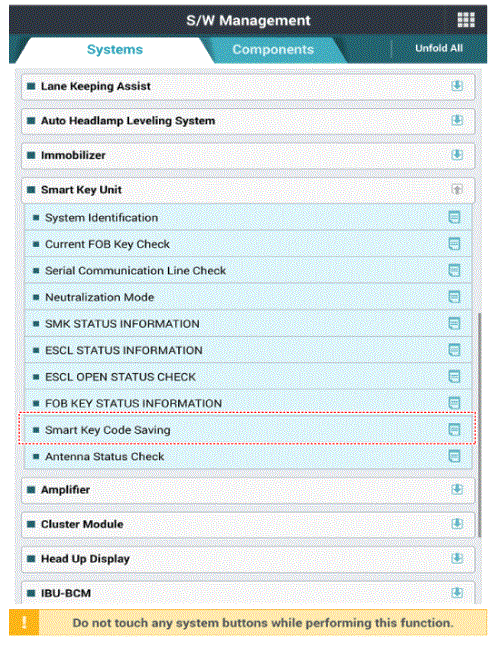

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G16148755Courtesy of HYUNDAI MOTOR AMERICA

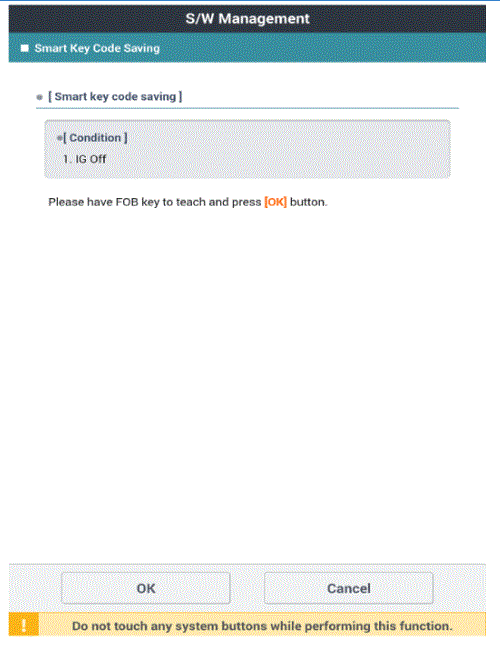

  4. Follow the instructions on the screen.
G16148756Courtesy of HYUNDAI MOTOR AMERICA
