Components (1)

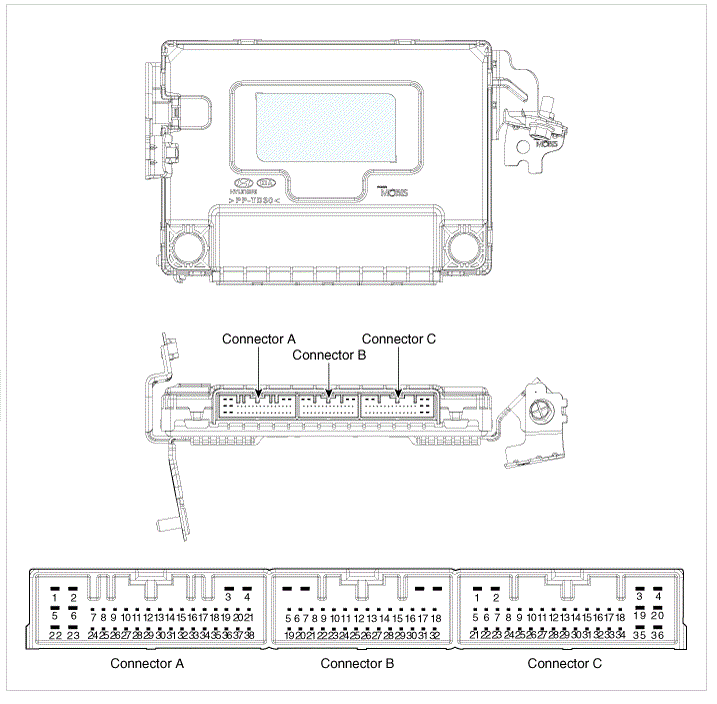

CONNECTOR PIN INFORMATION
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Fuel door release switch_input | GND_ECU | Front wiper relay (Low)_output |
| 2 | Fuel door open switch_input | PDW-F power_output | ESCL (+)_output |
| 3 | GND_Power | ESCL (-)_output | Start relay_output |
| 4 | PDW-R_Power_Output | Front wiper high relay_output | IGN1 relay_output |
| 5 | EMS ECU wake up_output | PDW-R switch IND_output | Immobilizer antenna power_output |
| 6 | Rear washer switch_input | P-Position_input | Immobilizer antenna ground_output |
| 7 | LIN4 (Rear seat remind) | - | - |
| 8 | P_CAN (Low) | Rear view switch_input | Driver outside handle antenna (+)_output |
| 9 | P_CAN (High) | - | Interior1 antenna (+)_output |
| 10 | - | Wheel speed sensor_input | Front bumper antenna (+)_output |
| 11 | B_CAN (Low) | - | Tailgate3 antenna (+) |
| 12 | B_CAN (High) | 3rd line sheet belt indicator RH_output | - |
| 13 | SSB switch_input | - | Passenger outside handle antenna (+)_output |
| 14 | Driver handle antenna switch_input | Rear center seat belt indicator_output | Immobilizer K-Line |
| 15 | P-Position_input (PWM) | Fuel door open relay_output | Bumper antenna (+)_output |
| 16 | Fog switch_input | - | Interior antenna2 (+)_output |
| 17 | Light switch_input | Auto light sensor signal_input | IGN2_input |
| 18 | Front wiper INT volume switch_input | Auto light sensor power_output | IGN1_input |
| 19 | Multifunction switch_input | ATM solenoid_output | IGN2 relay_output |
| 20 | Assist mirror unfolding switch_oupout | Puddle pocket lamp_output | Battery_power |
| 21 | Assist mirror (Horizontal)_output | - | Brake switch_input |
| 22 | Front washer switch_input | SSB ring illumination_output | Start feedback_input |
| 23 | Front wiper low switch_Input | piezo buzzer_output | - |
| 24 | LIN1 (PDW) | SSB symbol illumination_output | Driver outside handle antenna (-)_output |
| 25 | LIN2 (Safety ECU) | Fuel door close relay_output | Interior1 (-)_output |
| 26 | LIN3 (Rain sensor) | Wiper power relay_output | Front bumper antenna (-)_output |
| 27 | PDW-R power_input | Rear seat belt indicator RH_output | Passenger outside handle antenna (-)_output |
| 28 | PDW_input | Rear seat belt indicator LH_output | ESCL COM |
| 29 | SSB switch1_input | 3rd line sheet belt indicator LH_output | Tailgate3 antenna (-) |
| 30 | ESCL unlock_input | Rear wiper relay_output | ESCL Enable_output |
| 31 | Passenger outside handle switch_input | Auto light sensor ground_output | Bumper antenna (-)_output |
| 32 | PDW switch_input | Wiper parking switch_input | Interior antenna2 (-)_output |
| 33 | Sun roof Status_input | ACC_input | |
| 34 | Head lamp switch (High)_input | Mirror power_input | |
| 35 | Front wiper switch_input | ACC relay_output | |
| 36 | Rear wiper switch_input | Battery (+)_ECU | |
| 37 | Assist mirror folding _output | ||
| 38 | Assist mirror (Vertical)_output |
