Integrated Body Control Unit (IBU)

1. Disconnect the negative (-) battery terminal.
2. Remove the glove box.

   (Refer to Body - "GLOVE BOX ")

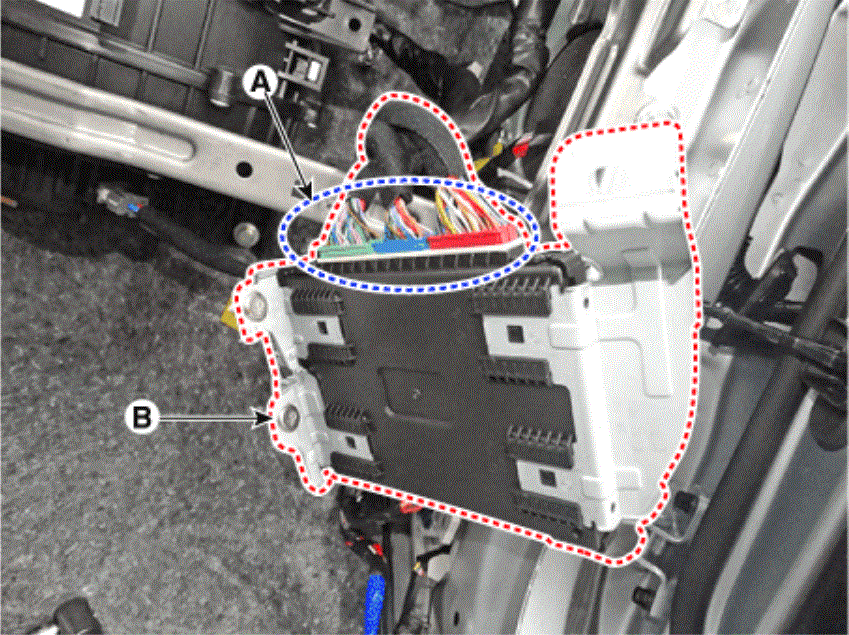

3. Remove the smart key unit (B) after loosening mounting bolts and disconnecting the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
