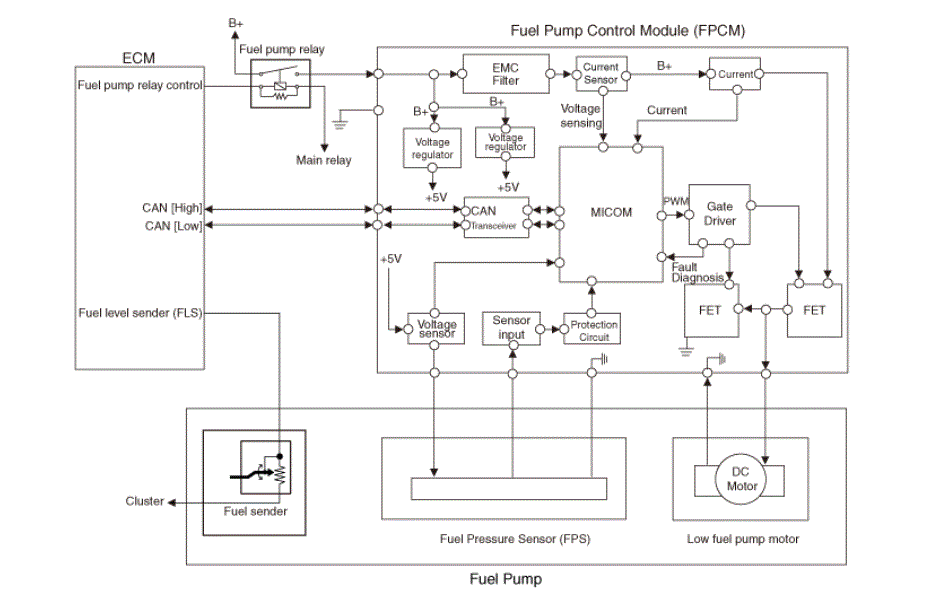

Home › Hyundai › 2022 › Santa Fe Plug-In Hybrid Limited › Repair and Diagnosis › Engine Mechanical › Fuel System › Fuel Delivery System (PHEV) › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
