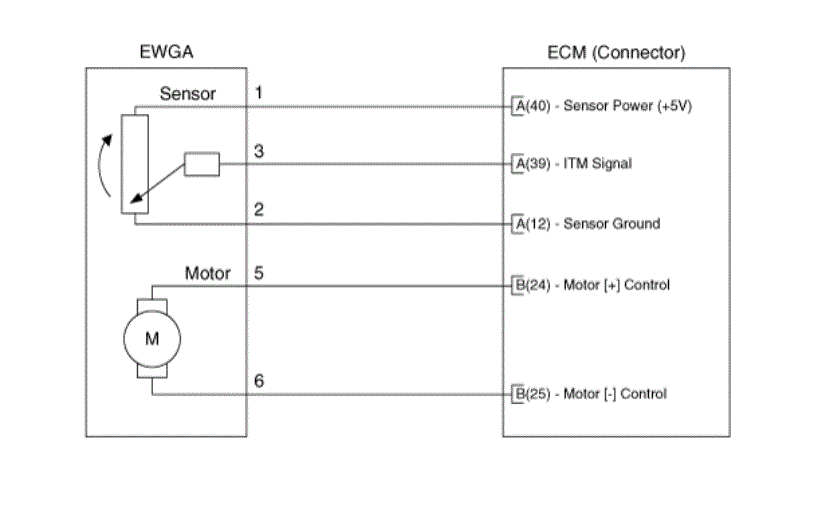

Home › Hyundai › 2022 › Santa Fe Plug-In Hybrid Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Electric WGT Control Actuator › Schematic Diagrams › Circuit Diagram › Notes
