Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

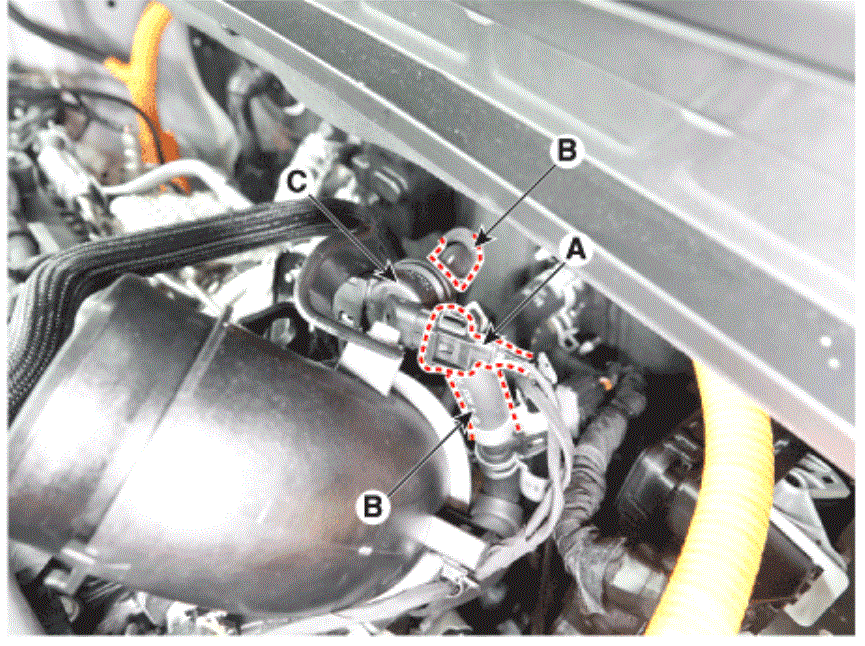

  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the purge control solenoid valve (C).
G16146453Courtesy of HYUNDAI MOTOR AMERICA
