Component Location

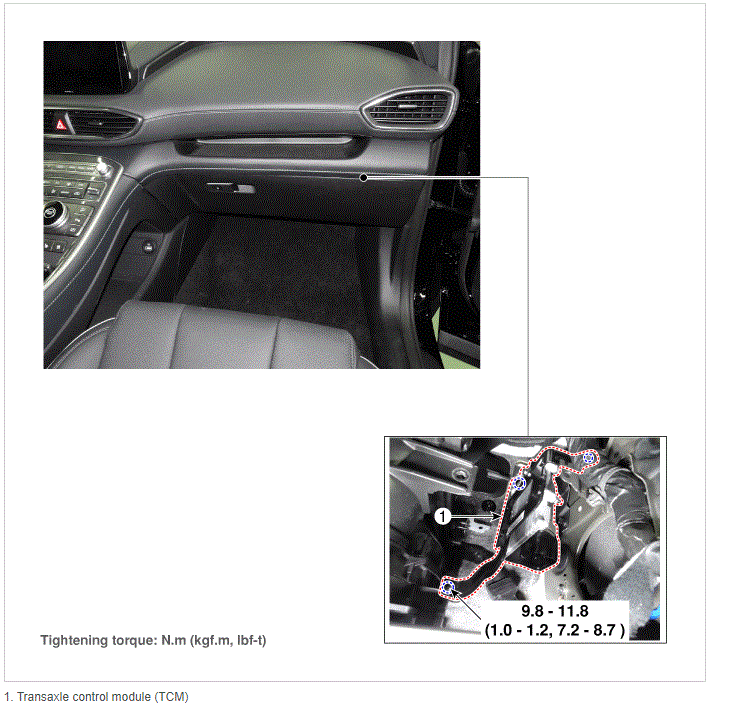

Fig 1: Transaxle Control Module Component Location With Torque Specification
G16146926Courtesy of HYUNDAI MOTOR AMERICA
