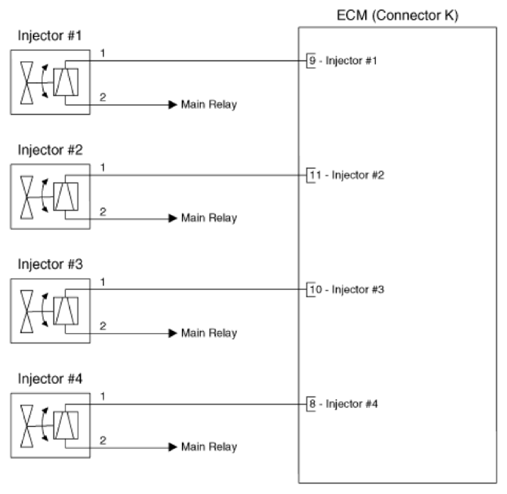

Home › Hyundai › 2022 › Sonata N Line › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5T (Except HEV) › Injector › Schematic Diagrams › Circuit Diagram › MPI Injector
