Smart Key Code Saving

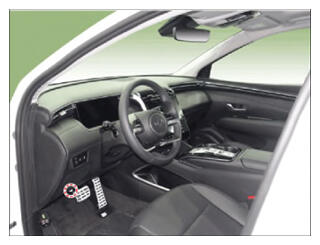

  1. Connect the DLC cable of diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on diagnostic tool.
    G16124250Courtesy of HYUNDAI MOTOR AMERICA
  2. Select the 'S/W Management' and 'Car model'.

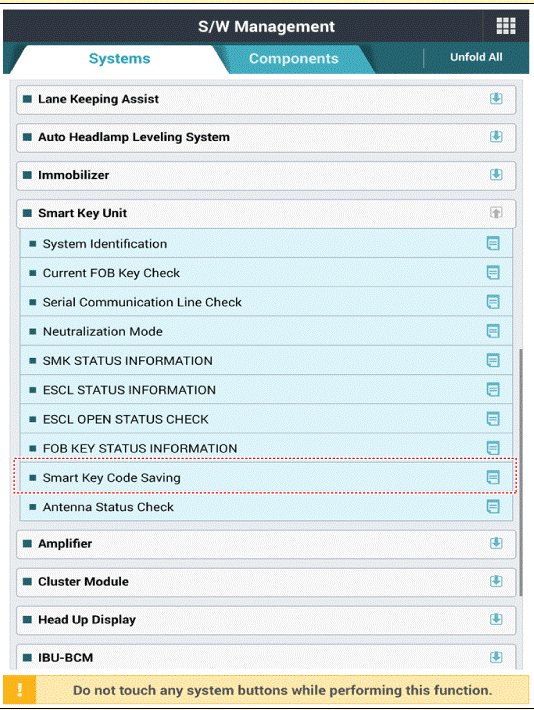

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G16124251Courtesy of HYUNDAI MOTOR AMERICA

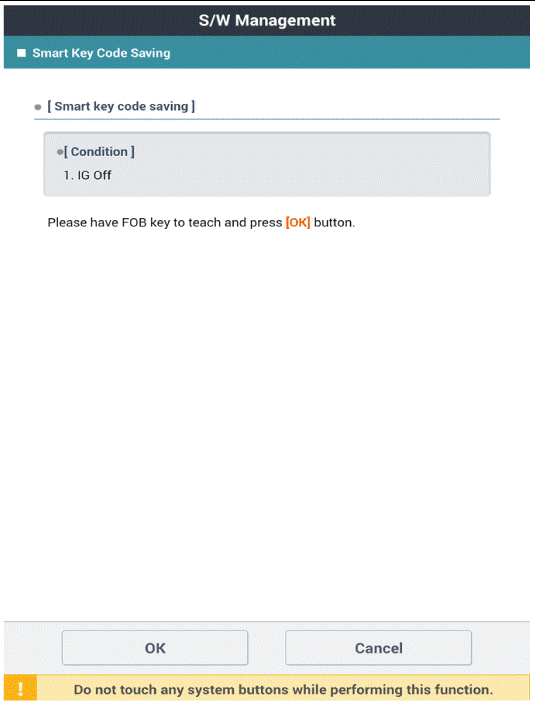

  4. Follow the instructions on the screen.
G16124252Courtesy of HYUNDAI MOTOR AMERICA
