Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B).
  4. Remove the purge control solenoid valve (C).

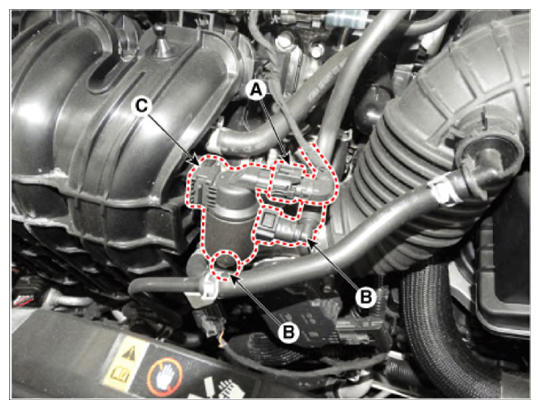

    Fig 1: Purge Control Solenoid Valve (PCSV) Components Location
    G14676918Courtesy of HYUNDAI MOTOR AMERICA
