Smart Key Code Saving

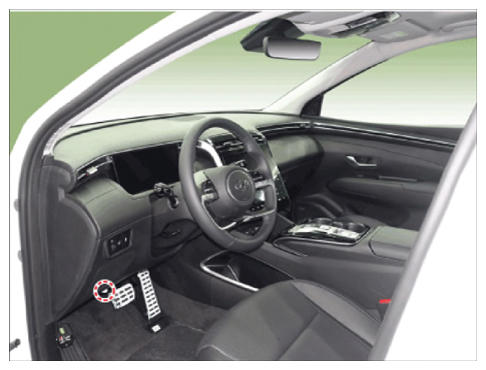

  1. Connect the DLC cable of diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on diagnostic tool.
    G14684203Courtesy of HYUNDAI MOTOR AMERICA
  2. Select the 'S/W Management' and 'Car model'.

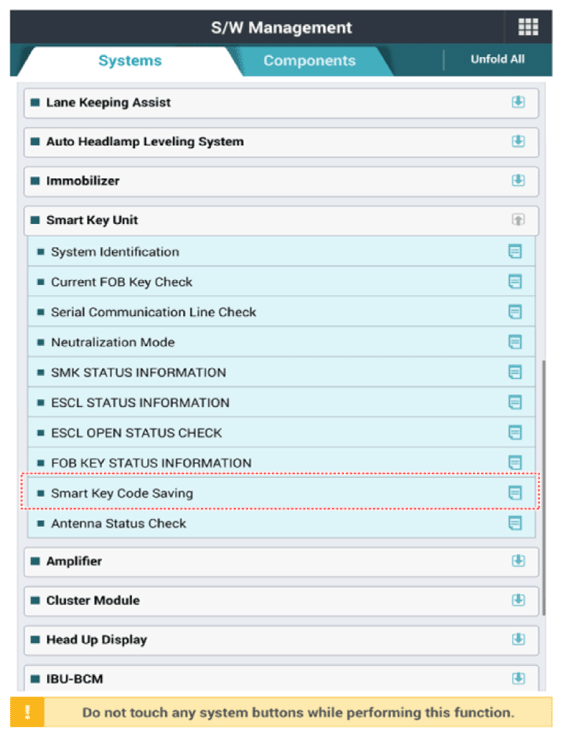

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G14684204Courtesy of HYUNDAI MOTOR AMERICA

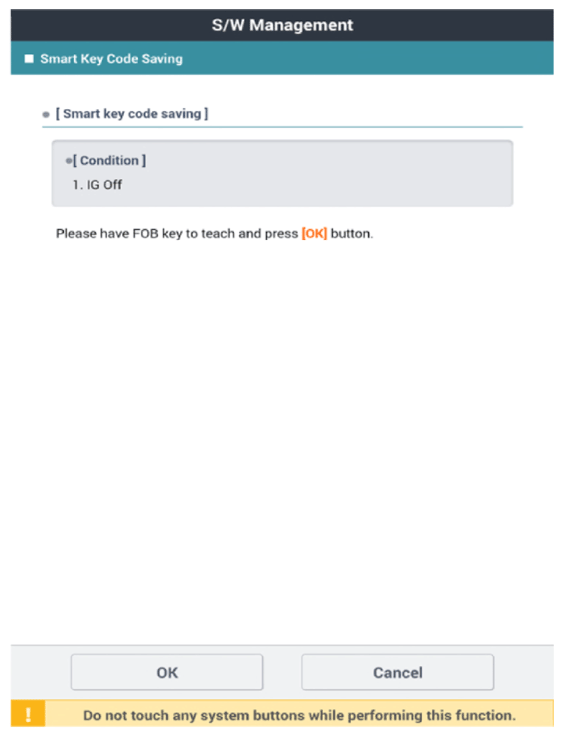

  4. Follow the instructions on the screen.
G14684205Courtesy of HYUNDAI MOTOR AMERICA
