Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.

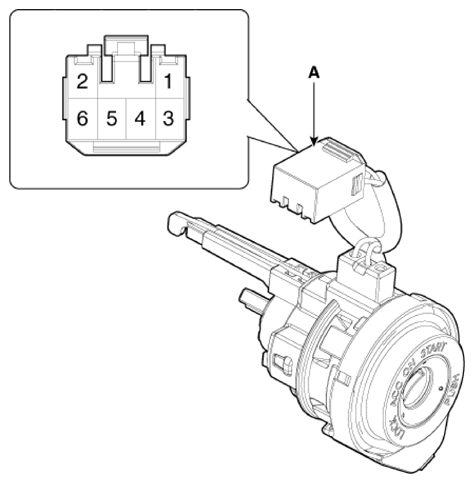

    G14684742Courtesy of HYUNDAI MOTOR AMERICA

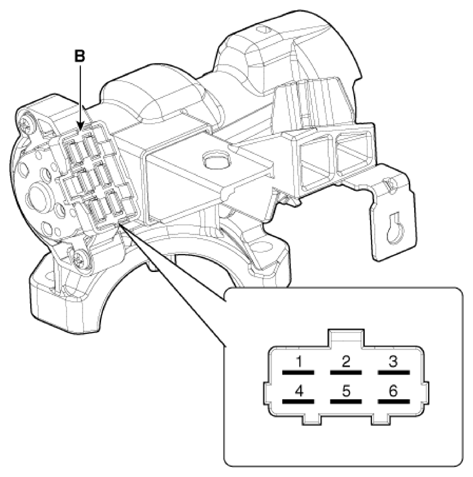

    G14684743Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

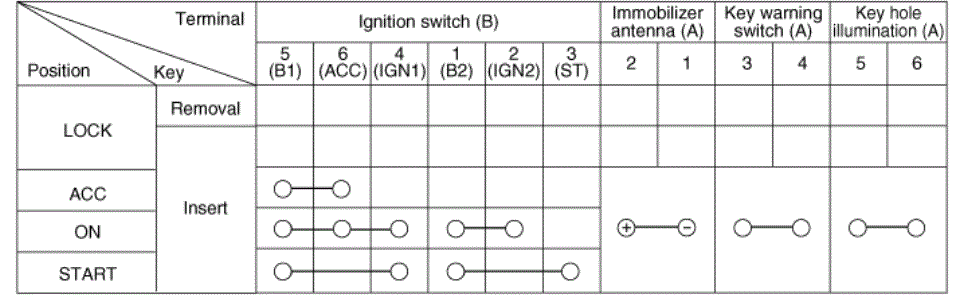

    G14684744Courtesy of HYUNDAI MOTOR AMERICA
