Removal
›
[Bank 1/Intake]
[Bank 1/Intake]
Turn the ignition switch OFF and disconnect the battery negative (-) cable.

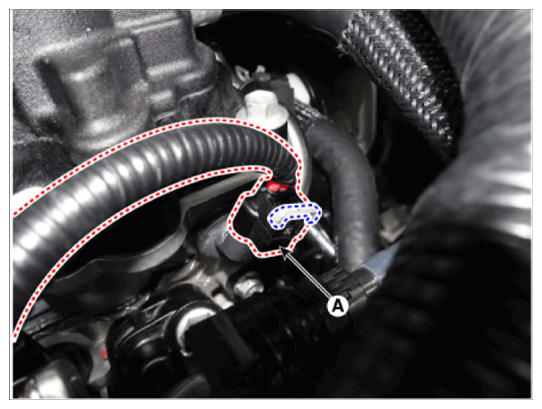

Disconnect the camshaft position sensor connector (A).
Courtesy of HYUNDAI MOTOR AMERICA

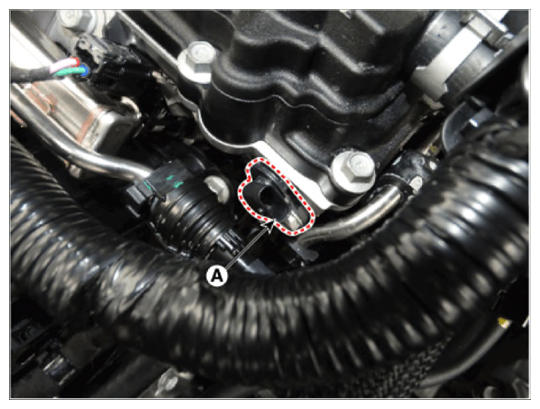

Remove the sensor after loosening the mounting bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
Fig 1: Camshaft Position Sensor (CMPS) Components Location [Bank 1/Intake]
Courtesy of HYUNDAI MOTOR AMERICA
