Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

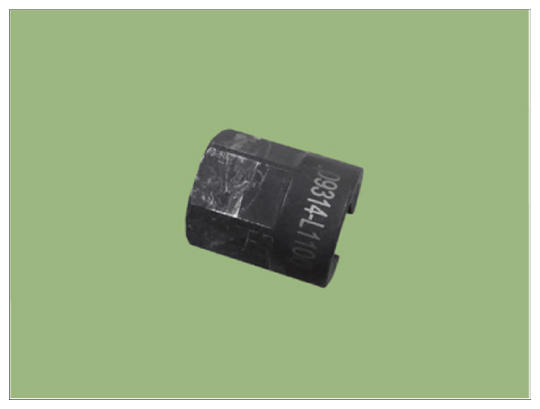

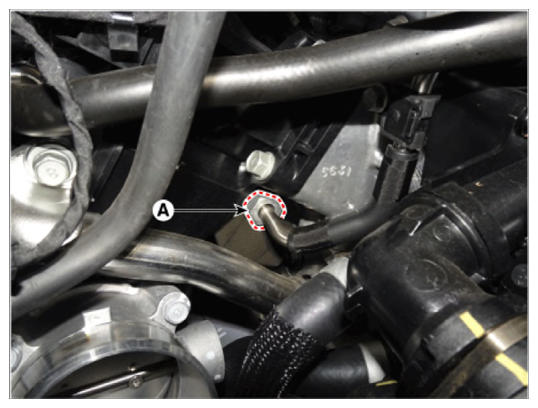

When tighten the high pressure fuel pipe flange nut (A), using the SST (09314-L1100).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

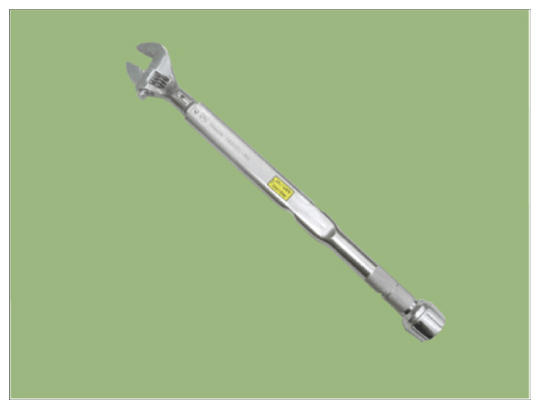

Using a spanner torque wrench (27 mm).

Courtesy of HYUNDAI MOTOR AMERICA

Note that do not deforming the high pressure fuel pipe.
Install the component with the specified torques.
Install the high pressure fuel pipe and then check the oil leakage.
When Installing the high pressure fuel pipe, using a SST (SST No.: 09314-L1100).
