Connector Assembly Status Test

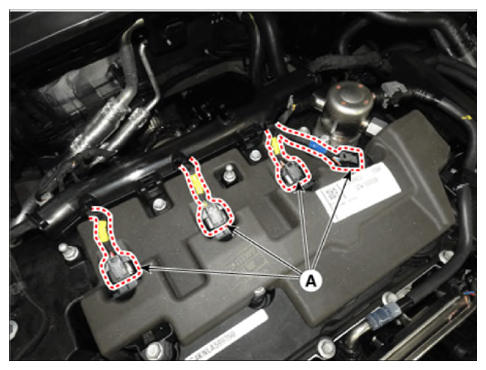

  1. Disconnect the ignition coil connectors (A) and reinstall it.
    G14676706Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the ignition coil form (A).
    G14676707Courtesy of HYUNDAI MOTOR AMERICA

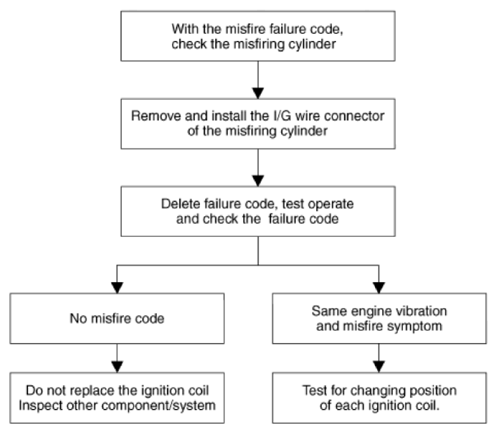

    G14676708Courtesy of HYUNDAI MOTOR AMERICA
