Driver Power Window Main Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - " FRONT DOOR TRIM REPAIR PROCEDURES  ")

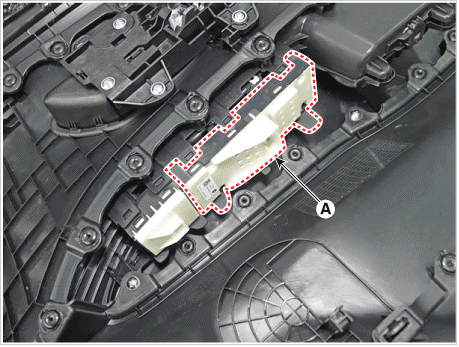

  3. Remove the power window main switch assembly (A).
G16175393Courtesy of HYUNDAI MOTOR AMERICA
