Components & Components Location: Components

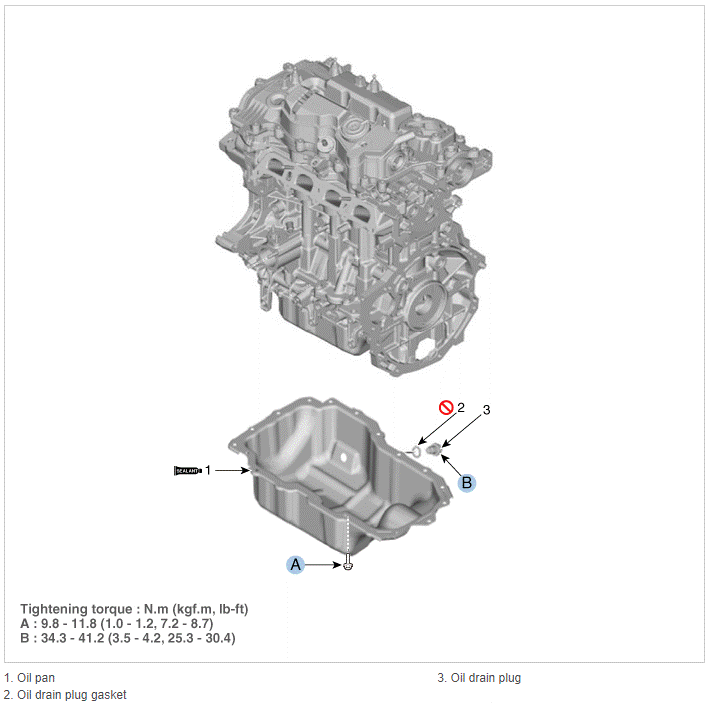

Fig 1: Oil Pan Components Location With Torque Specifications
G16172110Courtesy of HYUNDAI MOTOR AMERICA
