Removal
›
Bank 1/Intake
Bank 1/Intake
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

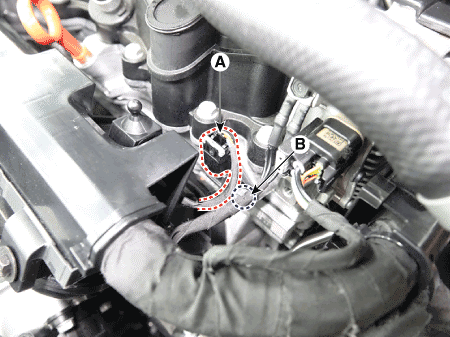

Disconnect the camshaft position sensor connector (A).
Remove the sensor after loosening the mounting bolt (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
Courtesy of HYUNDAI MOTOR AMERICA
