Repair Procedures: Removal

  1. Shut off the high voltage circuit.

    (Refer to Hybrid Control System - " HIGH VOLTAGE SHUT-OFF PROCEDURE  ")

  2. Remove the air intake hose.

    (Refer to Engine Mechanical System - " AIR CLEANER REPAIR PROCEDURES  ")

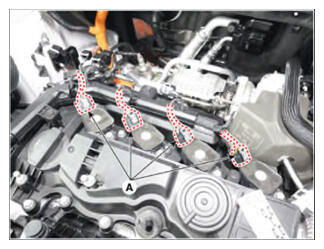

  3. Disconnect the ignition coil connector (A).
    G16172239Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip.
      G16172240Courtesy of HYUNDAI MOTOR AMERICA

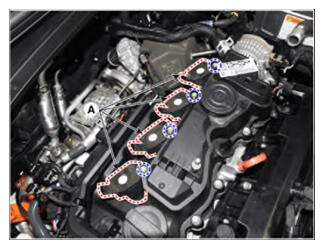

  4. Remove the ignition coil (A) after loosening the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 13.3 - 16.0 lb.ft)

    G16172241Courtesy of HYUNDAI MOTOR AMERICA
