Home › Hyundai › 2022 › Tucson Plug-In Hybrid Limited › Repair and Diagnosis › Engine Performance › Ignition System › Ignition System (PHEV) › Ignition Coil › Schematic Diagrams › Notes

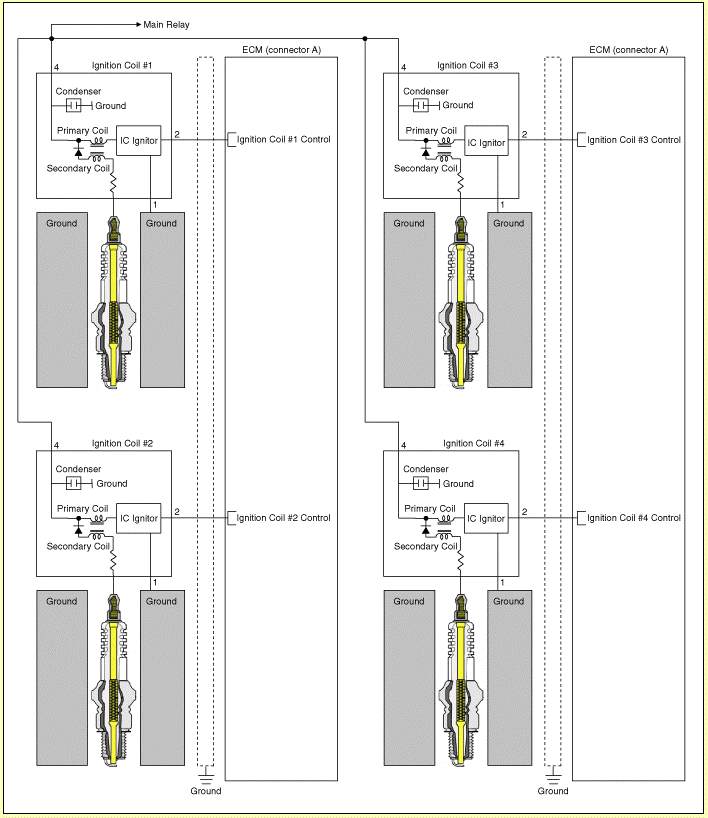

Schematic Diagrams: Notes

G16172237Courtesy of HYUNDAI MOTOR AMERICA
