Components And Components Location
Components And Components Location

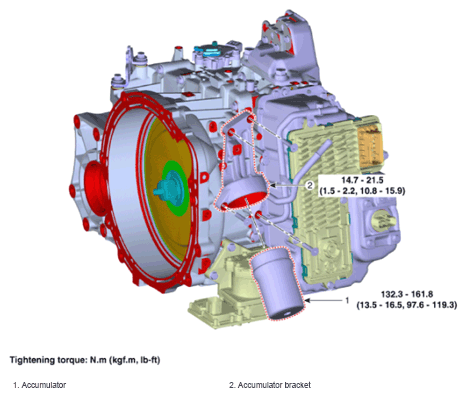

Fig 1: Accumulator Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
