Repair Procedures: Replacement
NOTE:
- Do not disassembly the steering gear box.
- If disassembly the steering gear box, the quality (Noise/cleanliness/functions) is not guaranteed.

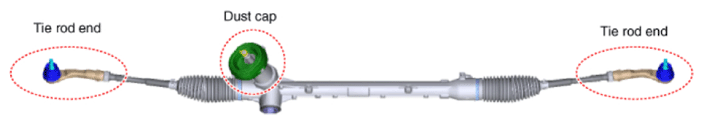

Tie rod end
- Remove the tie rod end after loosening the nut.
Tightening torque:
49.0-53.9 N.m (5.0-5.5 kgf.m, 36.2-39.8 lb.ft)
NOTE:- Before removing the tie rod end, note by measuring the length of the thread or marked with paint.
- Replace with new parts.
- Check the alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
