[Bank 1/Intake]

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

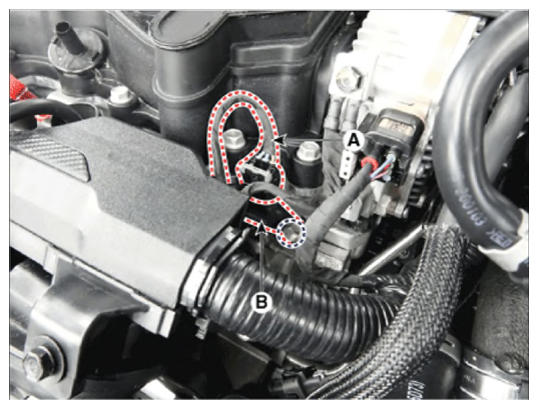

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt, and then remove the sensor (B).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14596373Courtesy of HYUNDAI MOTOR AMERICA
