Repair Procedures: Removal
- Disconnect the battery (-) cable.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

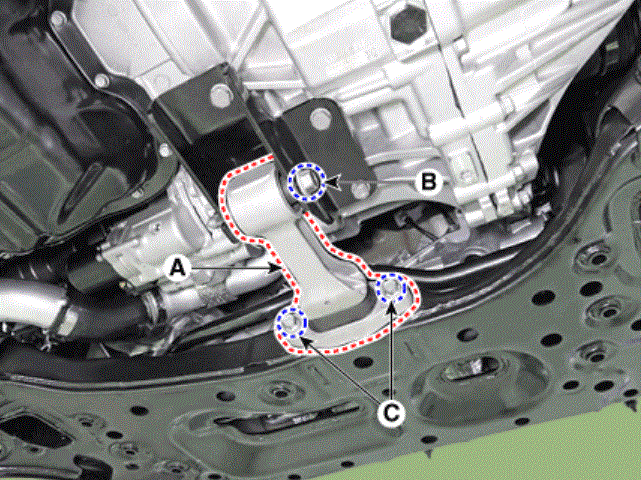

- Remove the roll rod bracket (A).
Tightening torque
Bolt (B): 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Bolts (C): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

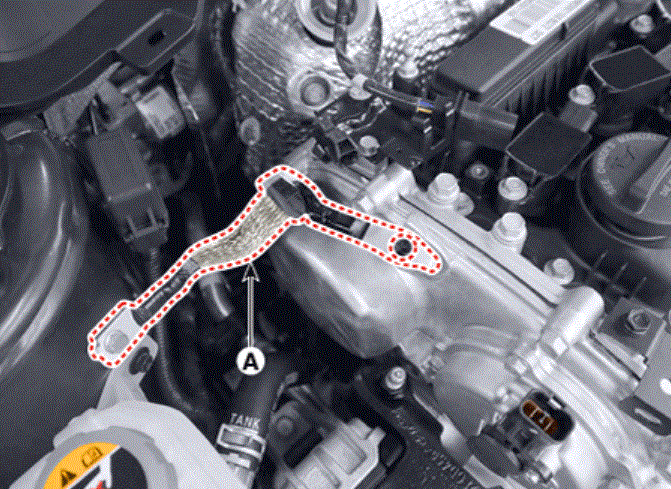

- Loosen the engine ground bolt (A).
Tightening torque:
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)
- Install the jack to the edge of upper oil pan to support the engine.NOTE:
- Insert the rubber block between jack and oil pan.

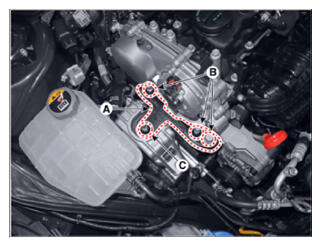

- Remove the engine mounting support bracket (A).
Tightening torque:
Bolt and nut (B): 63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb-ft)
Nut (C): 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

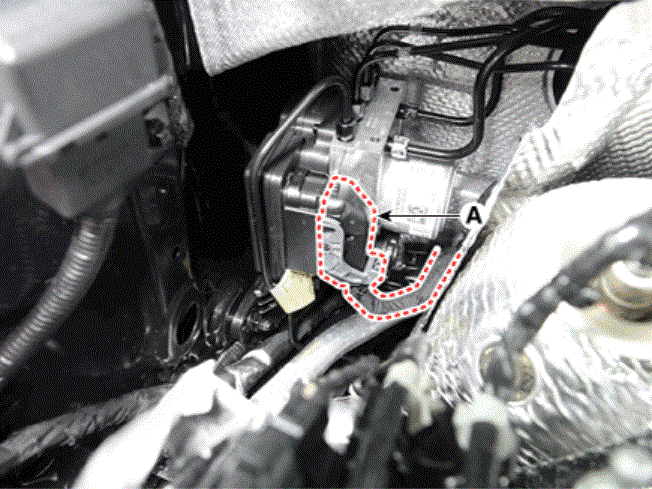

- Pull up the lock of the ESC connector and then disconnect the connector (A).

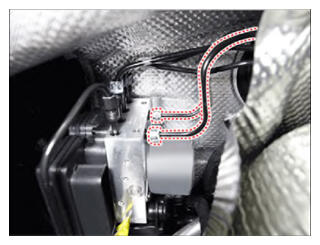

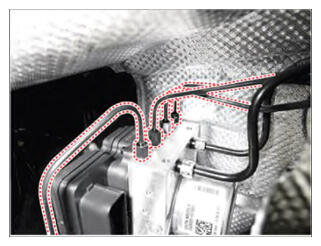

- Separate the brake tubes from the ESC after loosening the flare nuts.
Tightening torque:
12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft)
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

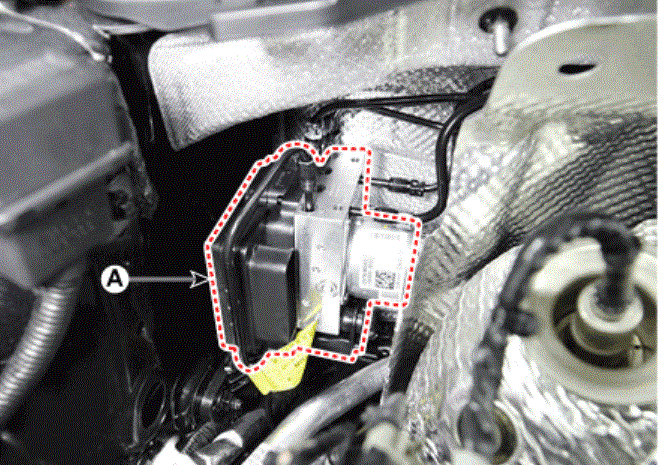

- Remove the ESC control unit (A) after loosening the mounting bolts.
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

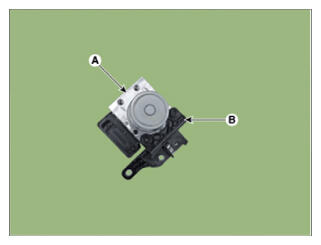

- Separate the bracket (B) after removing the mounting bolts from the ESC (A).
