Repair Procedures: Removal
- Disconnect the battery (-) cable.CAUTION:
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).
- Loosen the front wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

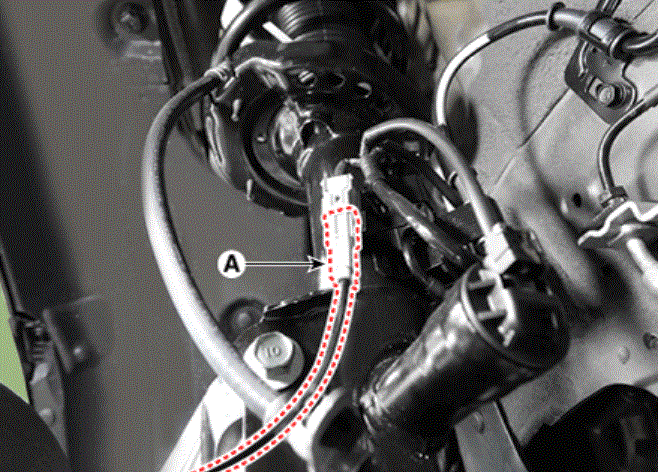

- Disconnect the front wheel speed sensor connector (A).

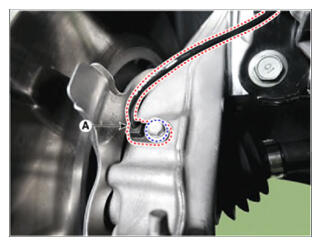

- Remove the front wheel speed sensor (A) after loosening the mounting bolt.
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
