Repair Procedures: Removal

Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
Remove the bolts and disconnect the horn connectors (A), then remove the horn (B).

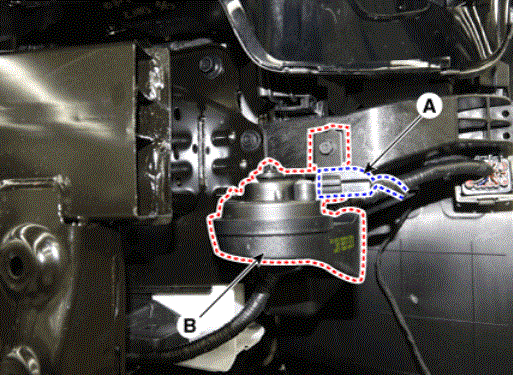

[Low pitch]

Courtesy of HYUNDAI MOTOR AMERICA

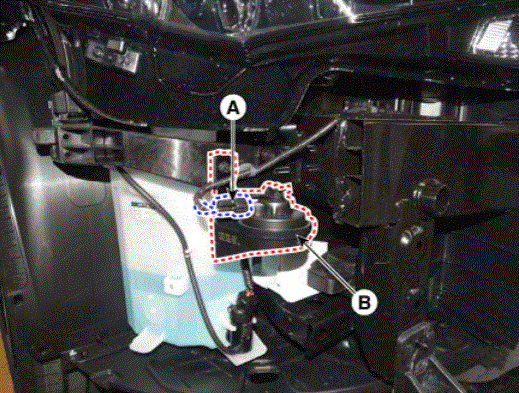

[High pitch]

Courtesy of HYUNDAI MOTOR AMERICA
