Rear Power Window Motor

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")
Loosen the mounting clips, nuts, screws and remove the front wheel guard (A).

Courtesy of HYUNDAI MOTOR AMERICA

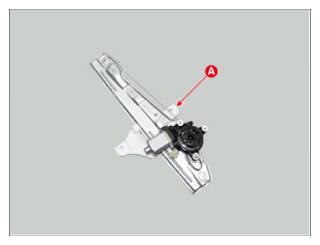

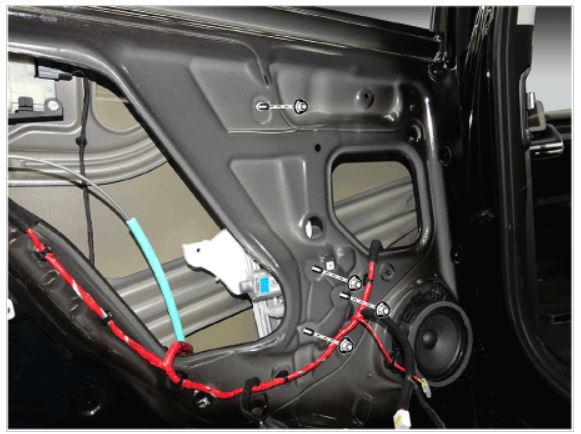

Loosen the mounting nuts, remove the front door power window regulator (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
