Power Window Sub Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Front/Rear door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

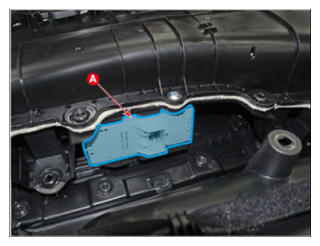

  3. Disengage the mounting clip and then remove the power window switch assembly (A).
G15463071Courtesy of HYUNDAI MOTOR AMERICA
